Spinal Dural Fistula

Spinal Dural Fistula (a.k.a. Spinal Dural Arteriovenous Fistula; a.k.a. Spinal Dorsal Intradural Fistula; a.k.a. Type I)

By far most common spinal vascular malformation.  Spinal dural fistula consists of a pathological communication between a dural artery and vein.  The fistula is typically located in the nerve root dural sleeve, and as such formed by a segmental radicular artery and radicular vein.  Some believe that Glomerulus of Manelfe, a ball-like structure (originally described as a “peloton vasculaire”) believed to regulate regional venous and CSF pressures, to be the site of fistula formation.  The fistula typically consists of a single hole, even when multiple feeders produce a “busy” appearance suggestive of a nidus. The fistulous connection may drain centrifugally (away from the spinal cord) via the radicular vein into the external venous paraspinal network, in which case the patient may be asymptomatic.  However, the fistulous radicular vein is usually connected, via a radiculomedullary vein, with the longitudinal venous network responsible for draining the spinal cord, as rudimentary radiculomedullary veins exist at many more levels that would be visible from an angiogrpaphic injection.  Arterialized pressure within the fistulous radiculomedullary vein leads to reversal of normal centrifugal radiculomedullary flow such that the fistula empties, in retrograde fashion, into the longitudinal spinal cord veins.   This process congests the spinal cord venous system, which can be angiographically seen as prolongation of normal spinal cord capillary phase.  Also, vascular congestion is in itself responsible for patient symptomatology.

The site of the fistula (most often in the thoracic, lumbar, or sacral regions) has no relationship with the patient’s symptomatology, because it is spinal cord vascular congestion, rather than fistula itself, that produces the clinical syndrome.  Longitudinal spinal cord veins extent along the entire length of the cord to the region of the conus; thus, regardless of fistula site, the most dependent portion of the spinal cord (conus) is invariably the site of most pronounced congestion and therefore the earliest location of edema, enhancement, and other findings which are visualized on noninvasive imaging.  The anatomy of the conal region therefore dictates the clinical presentation.  Many patients report a long history of bladder issues or other symptoms related to location of relevant neural networks in the conus.  Eventually, however, the disease progresses to produce sensorimotor deficits within the lower extremities which ultimately bring most patients to clinical attention.  The length of time between formation of the fistula and clinical decline appears to reflect both size of the fistula and eventual failure of the radiculomedullar venous system.

The intrinsic venous system draining the spinal cord, consisting of multiple radiculomedullary veins, is able to accommodate the “extra” fistulous volume for variable length of time.  Eventually, however, the radiculomedullary veins tend to fail, probably likely via high flow venopathy and possibly neointimal proliferation related to arterialisation of venous flow.  The reasons why the draining veins shut down remains unclear. The sequential closure of these veins, further congesting the spinal cord, and secondary temporary adaptations of the remaining outlets, may be responsible for the classic intermittent symptomatology experienced by the patient.  Eventually, enough of the radiculomedullary veins fail, the adaptive capacity of the system is exhausted, and the patient enters a progressive stage of disease, typically characterized by worsening of pre-existing vascillating symptoms (typically genitourinary) and development of sensorymotor lower extremity deficits.  An MRI at this time point will reveal the classic picture of dilated spinal veins and cord edema, which is always greatest at the conus for reasons detailed above.  MRIs of the same patient prior to the accelerated stage may be quite normal (or at least would require a very high index of suspicion to be read as potentially abnormal).  Catheter angiography is typically performed at this point and the fistula is found, sometimes after considerable search (it can be anywhere — off the iliacs, supreme intercostal, whatever)  The venous phase of such fistulous level injection will demonstrate dilated spinal cord veins with lack of regional venous radiculomedullary drainage.  Typically, by the time the patient is seriously enough symptomatic that most thoracic outlets have closed, and venous phase images show a tortuous enlarged spinal vein emptying into residual radiculomedullary veins at the high thoracic and cervical levels, the remainder having being destroyed.  At this time, closure of the fistula will likely prevent disease progression, but will not bring back destroyed radiculomedullary veins and may not produce a meaningful clinical improvement.  As with other neurologic conditions, the duration and severity of deficit will be inversely related to extent of eventual recovery.  The cord will remain congested even after obliteration of the fistula (to a far lesser extent, for sure) but clinical condition may not normalize.  Bladder symptoms are usually last to improve, but may recover after a considrable delay when little hope for normalization is any longer entertained.  Rarely, closure of the fistula leads to an unfortunate deterioration rather than improvement, in patient condition.  One reason for this decline is posttreatment thrombosis of the spinal veins, which having enlarged far beyond normal capacity and suddenly deprived of high volume fistulous flow, encounter marked venous stasis with subsequent thrombus formation.  It may thus be helpful to maintain gentle heparinization of the patient following either endovascular or surgical closure of the fistula.

Treatment:  The treatment of spinal dural fistula is usually endovascular.  A spinal angiogram is performed and fistula found.  A microcatheter is advanced into the region of the fistula and fistulous connection embolized.  nBCA is our preferred agent.  Coils and particles have no role in permanent occlusion.  Under some circumstances the fistula may not be amenable to endovascular treatment — some such considerations include presence of a radiculomedullary artery (or sizable radiculopial artery) giving rise to anteior or posterior spinal artery at the same level as the fistula, insufficient length of fistulous radiculomedullary vein “safety” prior to egress into the spinal veins, inability to achieve an optimal embolization position, etc. In such cases, we typically deposit several coils into the segmental artery to mark the location of the fistula and refer the patient for microsurgical obliteration.  The surgeon opens the dura and typically finds the fistula in the region of the nerve root sleeve, where it can be obliterated with cautery.  It is important not to decrease fistulous flow during such coiling so as to help the surgeon locate the fistula visually.  Needless to say, both angiographic and surgical approaches, roughly sketched above, are quite complex and best undertaken in centers of sufficient case volume and experience.

The following angiographic and diagramatic illustrations provide a better appreciation of the pathology than descriptive language alone.



FIGURE 1: NORMAL ANATOMY



The cord is diagramed to the left, with a zoom in section on the right.  A representative segmental artery (A) gives off the radicular artery (B) which supplies the nerve root sheath.  The spinal cord drainage is conducted through longitudinal spinal cord veins (D) into , which is drained by a radiculomedullary vein (C) in the direction shown by the blue arrow.  Additional radiculomedullary veins are present at other levels, also marked “C”.  A radiculomedullary artery (E) is also diargammed, supplying the anterior spinal artery (F)

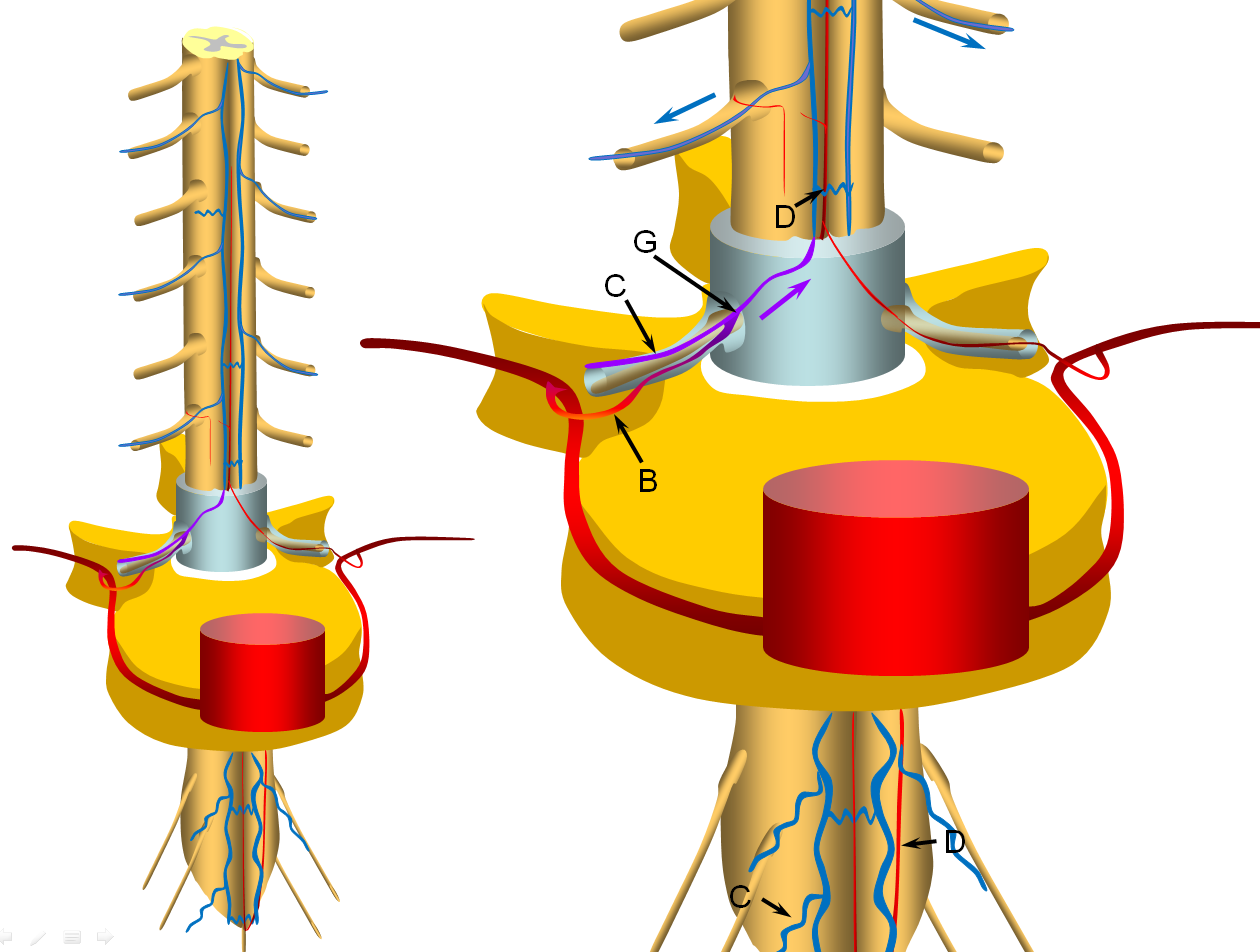

FIGURE 2: DURAL FISTULA, EARLY STAGE

A fistula (G) is formed between the radicular artery (B) and radiculomedullary vein (C), typically within the dural sleeve (dural cover of the radicular nerve, usually in the region of the neural foramen).  Other sites of fisula are of course possible, but regardless of fistula site, the clinical picture tends to be similar.  Establishment of fistula results in regional venous congestion and reversal of flow within the radiculomedullary vein (purple arrow) which direct fistulous flow into the spinal veins (D) with subsequent egress via other radiculomedullary veins (blue arrows)

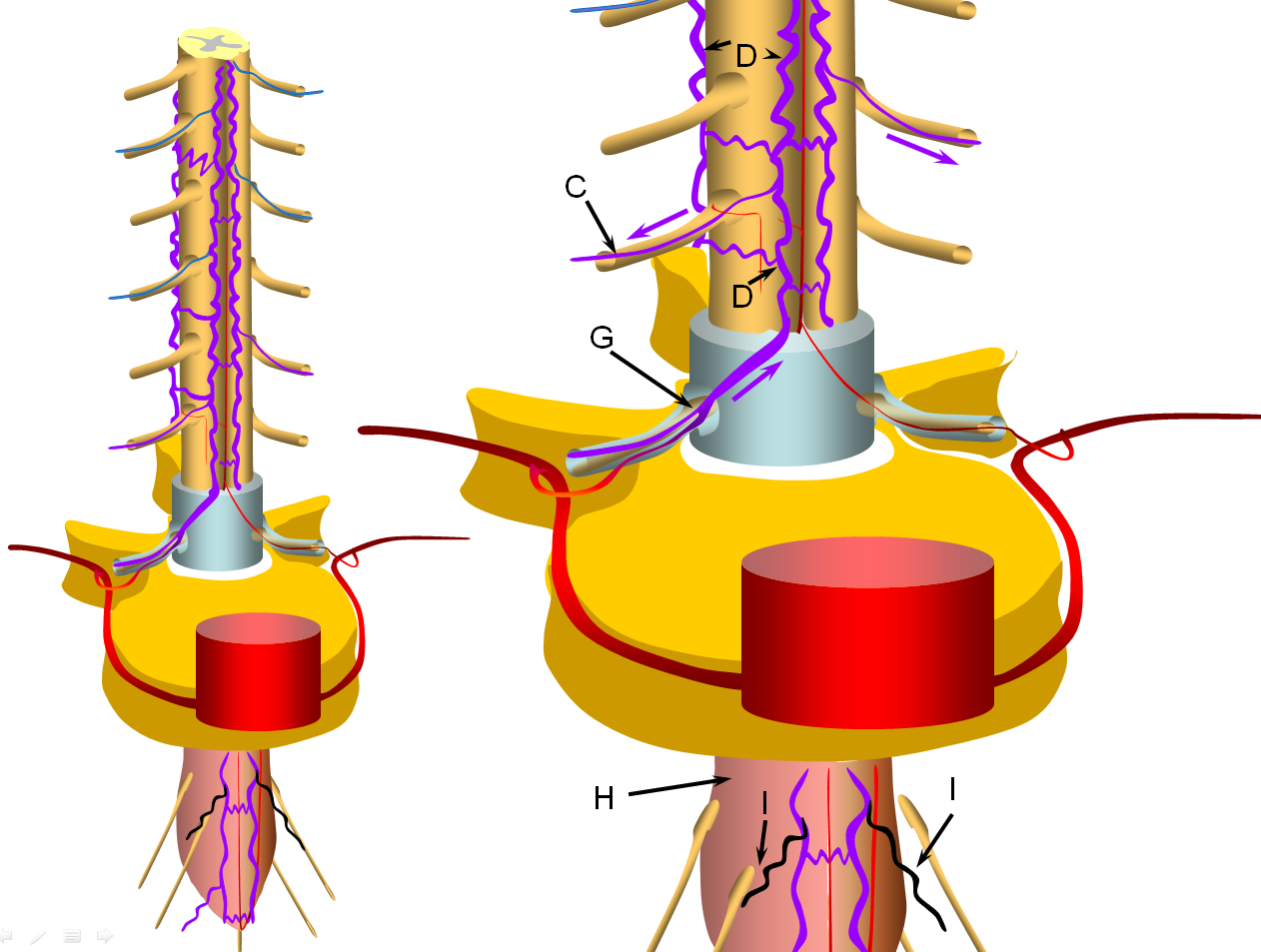

FIGURE 3: INTERMEDIATE STAGE (VASCILLATING SYMPTOMATIC STAGE)







Progressive increase in venous hypertension of the spinal veins (D) result in gradual failure of radiculomedullary veins (I, colored in black) via thrombosis starting with the most dependent location of conus (H, colored in redding hue to depict congestion).  The patient typically reports various conus symptoms such as urinanry complaints, which can be vague.  Urodynamics are usually abnormal at this stage but there may not yet be enough MRI evidence of congestion to suggest a vascular cause.  The symptoms tend to vascillate probably reflecting underlying changes in venous pressures and cord congestion.

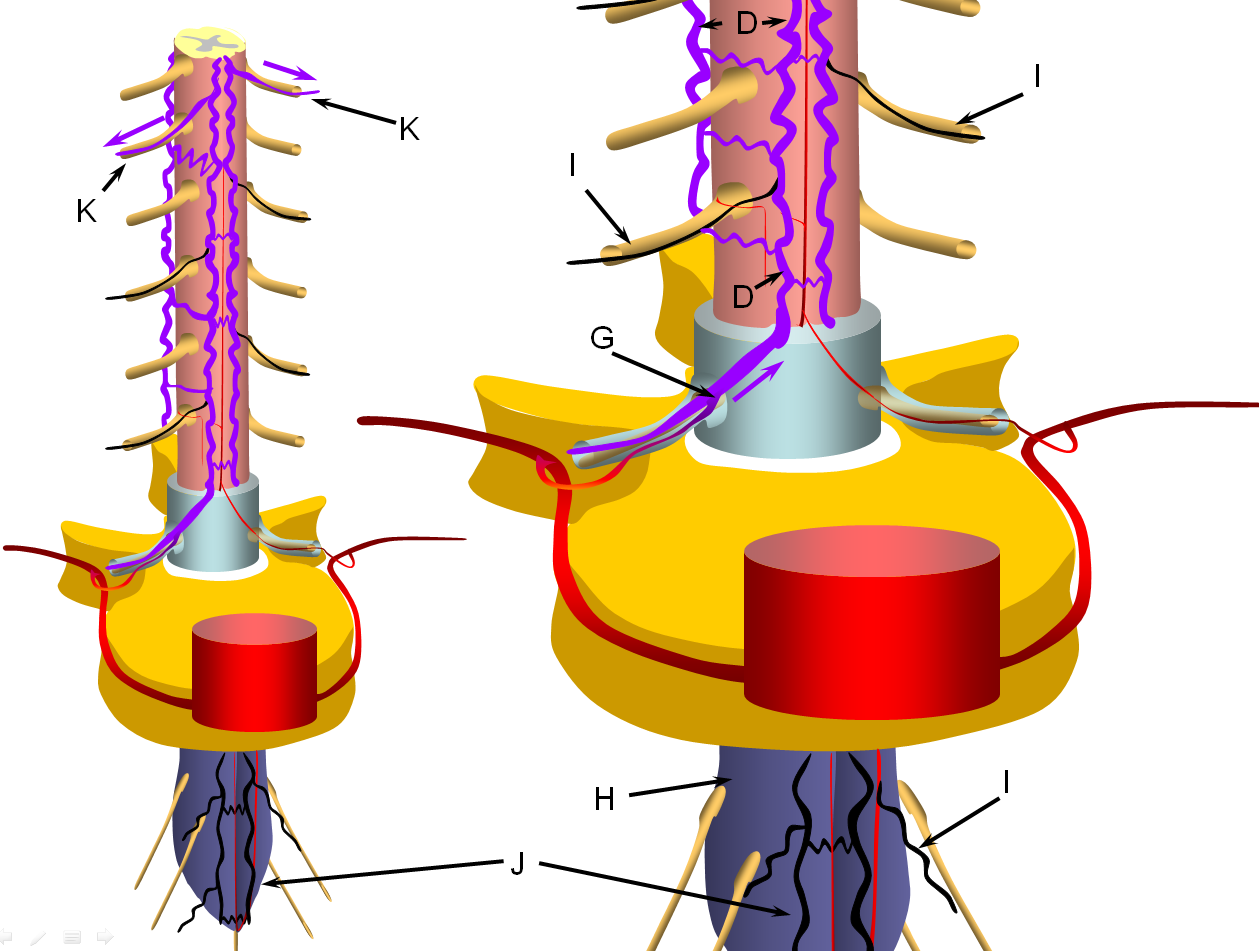

FIGURE 4: LATE STAGE (PROGRESSIVE FAILURE OF RADICULOMEDULLARY VEINS)







The stepwise process of venous outflow failure and subsequent partial adaptation to find progressively higher drainage routes continues until enough radiculomedullary veins fail to enter a more rapidly progressive stage of disease, depicted here. The fistula drainage is conducted via surviving rostral radiculomedullary veins (K), a large portion of the cord is congested, whereas the lower conal regions may undergo irreversible damage (J, diagrammed in blue).  Most patients present somewhere between the intermediate and late stages.



The following MRI and catheter images illustrate the above concepts.



Dural Fistula, typical MRI appearance, intermediate to lage stages. Congested spinal cord and dural veins (red) with spinal cord edema (yellow) are a classic combination of MRI findings in cases of AV fistula.  The fistula itself can be dural, pial, cord, etc., but the effects of it — venous congestion and edema (and clinical presentation) — are often similar.


SITE OF FISTULA, CATHETER ANGIOGRAM
Right T10 (in this case) injection shows a spinal dural fistula (yellow) reversing flow in the radiculomedullary vein (pink) to opacify the spinal vein (blue)

Dural fistula injection, cord venous congestion

Same level injection visualizing the entire thoracic and lower cervical cord (the carina shadow is at T5 level in this case).  The fisula (red) drains via a dilated radiculomedullary vein (light blue) into congested spinal veins (dark blue).  Five snapshots are taken of the successive time points, the latest at t+40 seconds from start of injection.  The first image from left is arterial phase.  Successive images (left to right) demonstrate marked venous congestion with no evidence of radiculomedullary outflow in the mid and lower thoracic sections.  These veins have thrombosed secondary to high-flow venopathy.  The first venous drainge of the fisula is at T4 level (above the carina), where multiple radiculomedullary veins (yellow) can be seen draining the fistula into the venous plexus surrounding the neural foramen (brown).



Anterior Spinal Artery Injection in case of Dural AV Fistula



The same patient.  The anterior spinal artery (red) is visualized from left T9 level.  The spinal cord is congested (purple) with no visualization of a normal spinal veinous network at the expected time of the venous pase (evidenced by visualization of the azygous vein (black) draining the vertebral body and paraspinal elements.  The spinal cord veins are not seen as they are congested by the fistula.



REFERENCE NORMAL APPEARANCE OF ANTERIOR SPINAL ARTERY/VEIN COMPLEX



Normal apperance, for reference.  Left-sided image in arterial phase of radiculomedullary artery (brown) supplying the anterior spinal artery (black), and visualizing via transient reversal of flow another radiculomedullary contributor (yellow) and, via retrocorporeal anastomoses (not shown) a poterior spinal artery (red).  Later normal venous phase images show a normal spinal vein (dark blue) with an associated regional patent normal radiculomedullary vein (light blue)



SAME PATIENT, A DIFFERENT REPRESENTATION

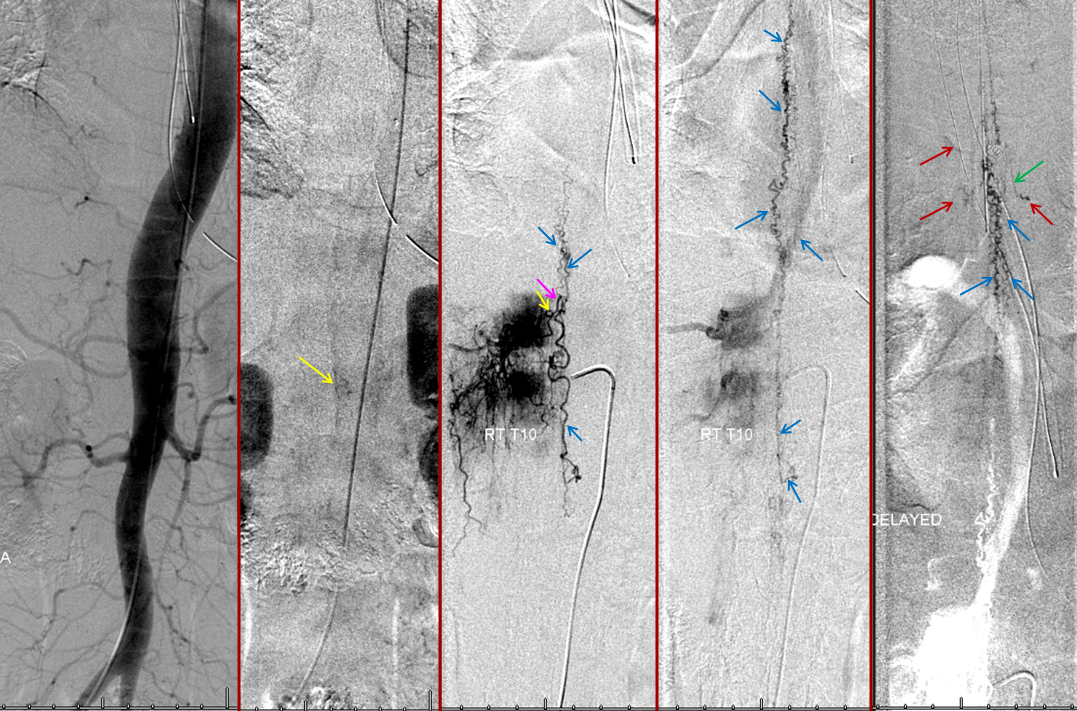

Thoracic aortogram arterial phase (leftmost) and late arterial phase (second from left) demonstrating a region of suspicion (yellow).  Right T10 injection arterial phase (middle) demonstrating the fistula (yellow) congesting the radiculomedullary vein (pink) and spinal veins (blue).  Late venous phase image (second from right) still shows no radiculomedullary veins.  Very late (50 second from injection) image (rightmost) showing radiculomedullary veins above the carina (green) draining into the foraminal venous plexus (brown)



Dural Fistula with EXTREME venous congestion — an apt illustration of how far things can go.  This patient was completely plegic by the time the following study was aquired — a fairly good predictor of extreme venous hypertension.  The fistula, at T10 level, has no identifiable thoracic or cervical drainage, finally decompressing into the cavernous and straight sinuses.

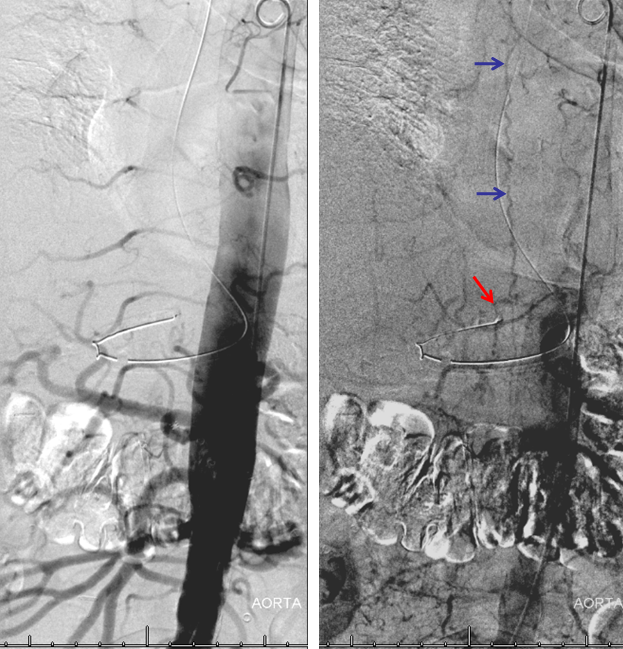

Aortogram, with late arterial phase imaging (right) demonstrating a large fistula (red) and a dilated spinal vein (blue).  To see a fistula this well on an aortogram is a bad sign.

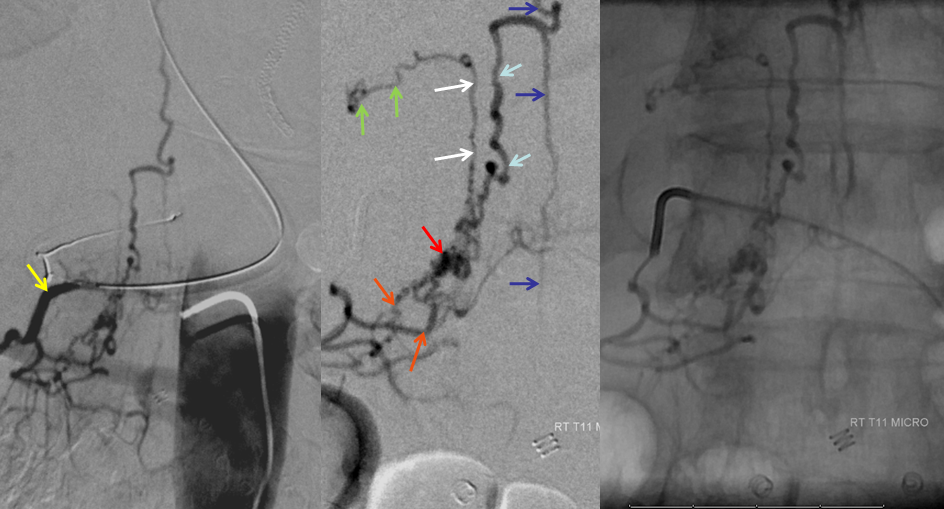

AP image on left side shows the T10 segmental artery (yellow).  Microinjections of same level (center and right, unsubtracted) obtained after wedging the guide considerably far down the segmental artery, demonstrate two radicular arterial channels (orange) leading up to the fistula (red), from which a radicular vein (light blue) retrogradely decompresses into and congests the spinal vein (blue).  Notice also a parallel vein (white), probably extradural, decompressing the fistula into the right T10 radicular vein (light green).

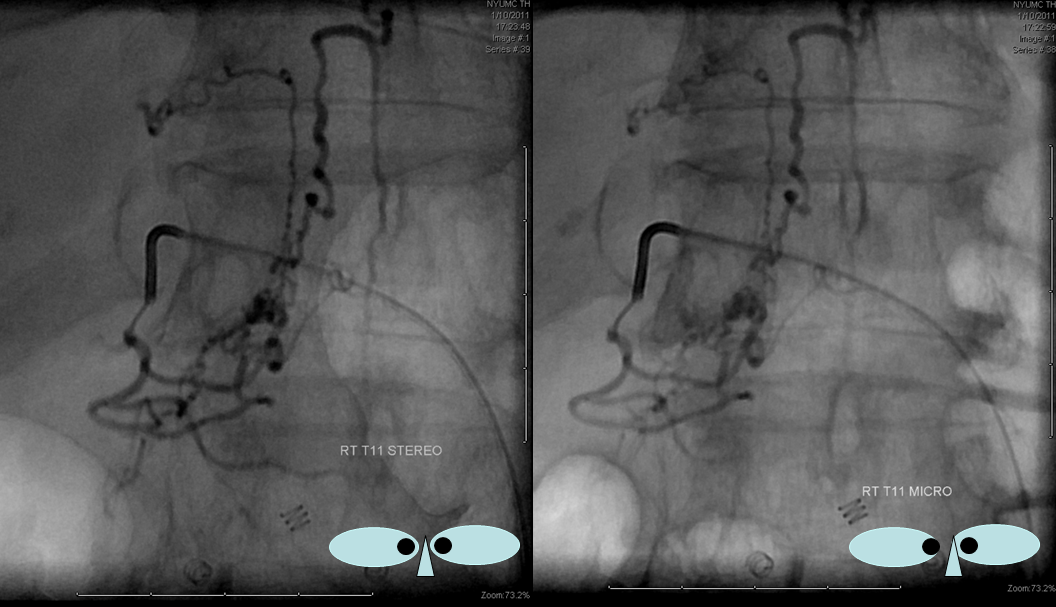

Unsubtracted stereo pair of the fistula — a very cool shot, where one can surmize the point where the draining vein becomes intradural: no labels, have to stereo :-), or if not, it is the point where the vein makes a small zigzag going down (and posterior through the dura) before heading back north again.  The parallel extradural vein remains relatively ventral.



The incredible venous congestion, illustrated by T11 injections of the fistula, whereby the spinal vein (blue) can be visualized draining superiorly along the entire length of the cord, finally decompressing via the superior petrosal sinus (brown) and a posterior fossa vein (green) into the cavernous sinus (purple) and the sigmoid sinus (black)



T11 injection, imaged in the lateral plane of the craniocervical region, again showing the spinal vein (blue) retrogradely draining via the superior petrosal sinus (brown) into the cavernous sinus (purple), and additionally via a posterior fossa dural vein (green) into the straight/transverse/sigmoid sinus systems (black).

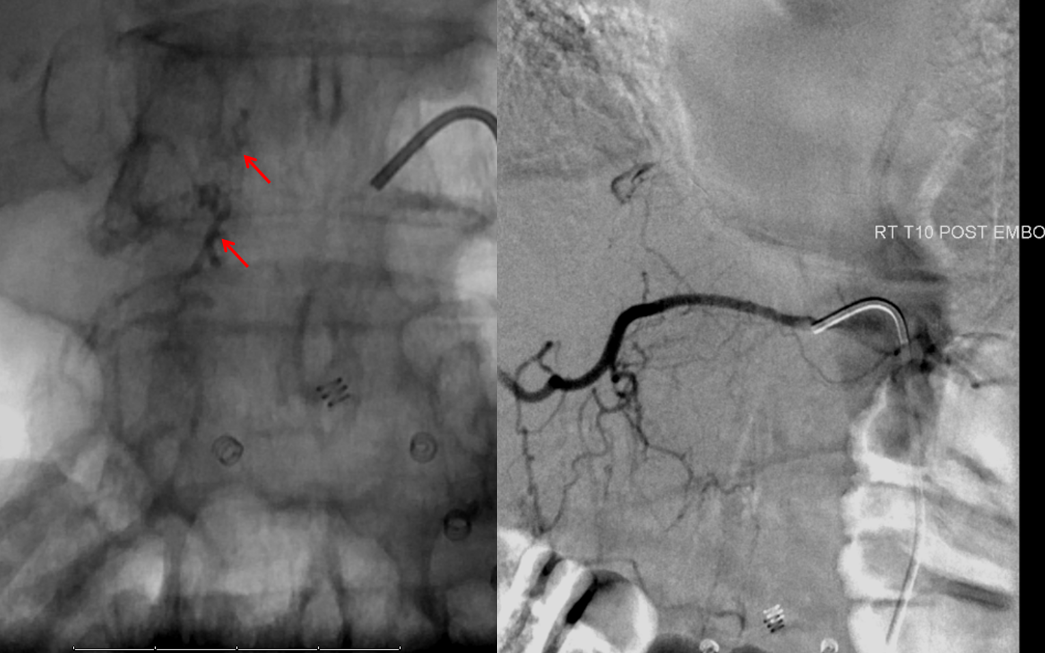

Finally, a post-embolization AP image on the left demonstrating n-BCA glue cast in the fistula (bottom red arrow) and its draining vein (top red arrow).  No residual fistula is seen (right image).  The fistula and its draining RADICULAR vein must be permeated with embolic material to effect a permanent cure.  Every attempt is made not to spill glue into the spinal vein (blue arrows on above images) since it may still be used by the spinal cord.  Notice spasm of the segmental artery where the guidecatheter was previously wedged in (not shown).  The guide is usually pulled, along with the microcatheter, after a glue shot.

DIFFERENT PATIENT, STEREO IMAGE

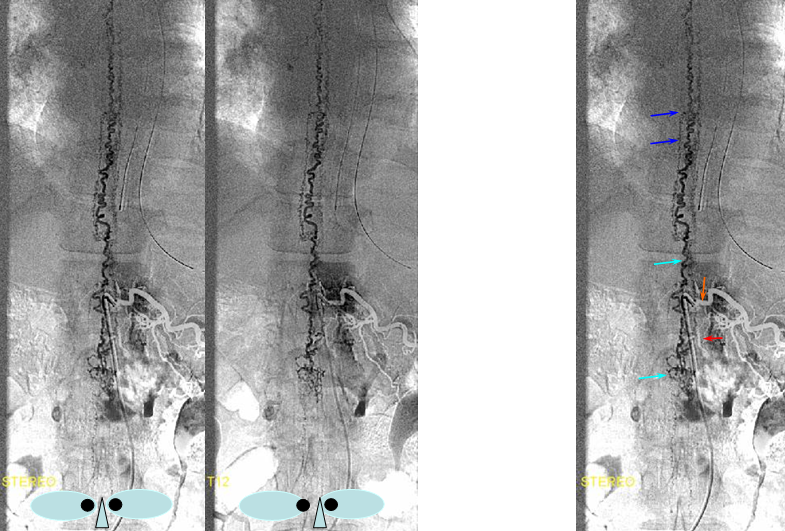

Dural Fistula angio, stereo and labels:  — a little different view of a fistula obtained by adjusting the mask to “white out” the arterial phase.  A T12 segmental artery (orange, B) gives rise to a dural branch (red, M).  A fistula (yellow) proximal to a dilated vein (light blue) is present.  The spinal cord veins are congested.  The dark blue veins constitute the dorsal venous network, while the larger light blue channel is ventral to the cord).  The upper left pictures are a stereo pair (with the eyes), obtained with the AP camera 4 degrees apart while keeping everything else constant.  Crossing the eyes or using special glasses can help you see it in stereo (where you can readily tell the difference between ventral and dorsal venous networks)

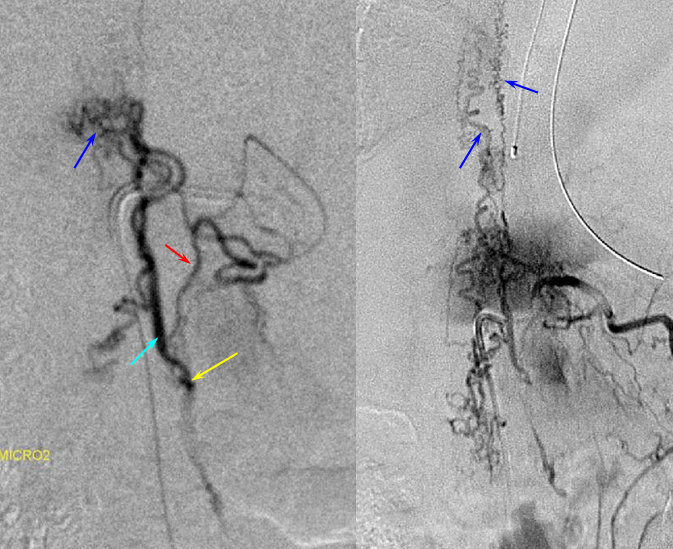

A microscopic injection of another dural fistula



 ILIAC ARTERY ORIGIN OF AV FISTULA

Sacral segmental artery originating from the iliac artery. The importance of iliac artery investigation cannot be overstated.  Sacral segmental arteries can arise from this location.  The patient whose images are shown below underwent two spinal angiograms for investigation of suspected dural fistula, based on classic MRI appearance of cord congestion and serpiginous vessels in setting of progressive neurologic decline.  Only on third time around was the left internal iliac artery injected, easily disclosing a fistula, supplied by a segmental artery (purple) and collateral probably dural artery (orange) with fistula point (red) and congested spinal vein (light blue)



2. Iliac artery origin of intradural fistula
An intradural fistula supplied from the internal iliac artery.  This intradural S1 level fistula is supplied via a segmental artery (purple) and a second, probably dural artery (orange) with fistula point (red) and congested spinal vein (light blue).

3.  Ascending pharyngeal artery origin of intradural fistula.

At the other end of the spinal canal is a fistula supplied by the ascending pharyngeal artery.

What typically defines spinal dural fistula symptomatology is NOT the site of fistula but the extent of spinal venous congestion, and venous mode of drainage.  It is, in fact, a venous congestion disease, albeit with an arterial cause.  Nevertheless there are sometimes clinical and MR imaging aspects that hint at something unusual.  This is aptly illustrated in this case of a middle-aged man presenting with upper and lower extremity paresthesias — yet typically omnipresent urinary / bowel symptoms were absent.  Composite MRI of the spinal column (left image) and cervical spine (right image) shows extensive congestion of the veins (purple arrows).  Notice, however, that the conus and lumbosacral radicular veins are somewhat less prominent than might be expected for the degree of venous prominence (white arrow). There is also suspiciously little edema within the cord.
While the diagnosis of spinal fisula should not be in doubt (as sometimes unfortunately happens when the first spinal angiogram fails to uncover the fistula), there is something unusual about this one.  In fact, the initial angiogram, including pelvic vessels, was “negative”.   The fistula was found on repeat angiography by focusing on high-yield “second angio” vessels such as the ascending pharyngeal artery.  The following images show a dural fistula (red) supplied prinicipally by the hypoglossal division (green) of the ascending pharyngeal artery, draining into the same dilated spinal veins (purple) as seen on the above MRI.
Images below show selected rotational 3D-DSA views “down the barrel” of the spinal canal (upper left), oblique dual volume view showing the hypoglossal canal (white oval circle) through which the hypoglossal division (green) connects to the fistula (red).  Bottom images are an obligatory stereo pair.  Notice reflux into small posterior meningeal tributaries to the fistula.  This is an example of a “foramen magnum” dural fistula, which usually drains into regional veins of the posterior fossa and marginal sinus. This one, however, has no such drainage — only spinal veins are available (perhaps all others have thrombosed off by now) – it is therefore only an “unwilling” spinal fistula, so to speak.
Injections of the same ascending pharyngeal artery with delayed imaging over the spinal column show an amazing picture of tremendous venous congestion throughout the entire spinal venous axis, with only visible drainage via the radicular veins of the cauda equina (light blue arrows) !
Incidental Cervical Segment Dural Fistula — very rare.
Black arrows — spinal veins; white arrow — ASA
Laterals (fistula site — dashed arrows)
Native lateral
Dyna CT
Upper cervical dural fistula with rapidly progressive myelopathy
Foramen magnum and cervical dural fistulas seem to be somewhat unique in their ability to very rarely hemorrhage, as well as to precipitate hyperacute clinical decline.  I think this is related to the fact that, as seen in the above case, the drainage of the cervical fistula into dependent cord veins will involve essentially the entire cord.  This is different from thoracolumbar level fistulas, which develop cephalad drainage in proportion to the degree of caudal venous drainage failure.  In this sense, any compromise in caudal venous drainage of a cervical level fistula will abruptly endanger a large segment of the cord.  This particular patient presented with acute onset of rapidly progressive (over 1 day) bowel and bladder dysfunction and ascending paralysis to the extent that about 24 hours from time of symptom onset he was having difficulty moving the upper extremities and felt short of breath.
MRI showed extensive edema (white arrow) in the cervical area with dilated venous channels (blue)
Vertebral artery injection shows fistula supply via branches of the odontoid arcade (purple) and C2 dural artery (orange).  The recipient vein is blue, and an aneurysm ventral to the medulla is black.  The area of the fistula itself is rather busy.
https://neuroangio.org/wp-content/uploads/Spinal/Spinal_cervical_dural_fistula_3.png
Injection of the ascending pharyngeal artery also shows its contribution to the fistula from the musculospinal branch (yellow), which subserves the area o the upper cervical spinal area (See Ascending Pharyngeal Artery).  The fistula point (red) is determined by area of transition from many converging small dural branches onto a larger venous channel (blue), and is better seen here than from the vertebral injection.  A venous aneurysm ventral to the medulla is shown in black.  The fistula decompresses into anterior and posterior spinal veins.
https://neuroangio.org/wp-content/uploads/Spinal/Spinal_cervical_dural_fistula_2.png
Angiography of venous component shows its extensive congestion all the way down to the conus.  It is absolutely astounding how a relatively small dural fistula can cause so much congestion.  The reason is that the transdural venous egress is the weak link within the spinal venous system, and is easily overwhelmed.
https://neuroangio.org/wp-content/uploads/Spinal/Spinal_cervical_dural_fistula_4.png
The microcatheter (purple) is positioned within the odontoid arcade branch and skillfully navigated by Dr. Tibor Becske essentially to the point of the fistula. It is a perfect spot for glue injection, the closer to the fistula the better.  The catheter is “wedged”, with forward flow control.  Notice how injection allows for retrograde visualization of the musculospinal ascending pharyngeal branch (yellow), perfectly showing the convergence of these feeders upon the fistula point (red).  The proximal recipient vein is blue, and the aneurysm is black.
https://neuroangio.org/wp-content/uploads/Spinal/Spinal_cervical_dural_fistula_5.png
Following glue injection, the odontoid branch will be closed. The “control” angiogram must be performed from another feeding branch — in this case both vert (C2 contributor) and ascending pharyngeal should be tested.  Both show that the fistula is closed:
https://neuroangio.org/wp-content/uploads/Spinal/Spinal_cervical_dural_fistula_6.png
A CT scan of the cervical spine beautifully shows the n-BCA cast, with the different contributions of the ascending pharyngeal (yellow), C2 (orange) branches now filled with glue — the strategy for the cure is to fill the fistula hole, refluxing nBCA into the other contributing arteries.  The point of the fistula along the dura (red) is now seen as a transition between multiple smaller arterial feeders and the larger recipient proximal intradural vein (blue).  Notice how nicely the glue shows the C2 radicular contribution through the neural foramen.
https://neuroangio.org/wp-content/uploads/Spinal/Spinal_cervical_dural_fistula_7.png
The patient made an amazing clinical recovery.
Common radiculomedullary artery and dural fistula origin
There is no law against both the fistula and radiculomedullary artery origin from the same segmental artery, just as there are cases of radiculomedullopial artery (radiculomedullary and radiculopial artery common origin).  In fact, there is a radiculodural branch at every radiculomedullary artery origin, and the radiculodural branch is to small to be seen, as it always is.  Unless, of course, it is connected to a fistula…
This patient with progressive myelopathy and several spinal MRIs was finally referred to Dr. Jonathan Howard, an MS specialist at our center who knows better than writing “MS” on everything one doesn’t understand.  MRI shows typical findings of extensive lower cord edema and surrounding vasculature.  This cord does not enhance on post-contrast T1, but many do, usually in a patchy kind of way.
A thoracic aortic runoff, as usual.  Unlike high flow pial fistulas, dural shunts are slow and therefore more difficult to see on an aortic runoff.   The ones with this amount of cord edema are usually big enough, though.
Fistula is found at the left L2 level, along with the Adamkiewicz (white arrows), arising from the same dorsal spinal branch (black).  A VERY long bridging vein (purple) is present, finally decompressing into multiple spinal veins at the top of rightmost images (not labeled…).  This entire bridging vein can be safely permeated with glue, up to the spinal veins, which would make it a rather straightforward case, except for the anterior spinal.  Catheterization and embolization of the fistula carries what i consider a rather small but still unacceptable risk of catastrophic injury, especially when surgical options are available.
Another series of images, showing better the characteristic parenchymal phase congestion of the conus (purple arrows), with no visible draining veins.

Stereo views are not simply cute.  The are very useful in confirming that the long bridging vein undulates along the left posterolateral surface of the cord, with the anterior spinal artery serving as a stereo landmark of the ventral surface.  This helps determine optimal surgical approach, which we choose in such cases instead of risking inadvertent radiculomedullary artery occlusion in an attempt at endovascular disconnection.


Venous drainage of the fistula must always be defined, in this case extending to the upper thoracic region, as is typical in cases of severe cord signal change on MRI.
In situations like this one, we feel that embolization is probably riskier than open surgery, where the bridging vein can be positively identified and disconnected (cauterized and divided) from the fistula.  This patient was referred for open surgery.
A single level laminectomy is performed, and the dura is opened, exposing nerves of the cauda equina, each of which is associated with a radicular vein (purple arrows).  These veins are larger in caliber than they should be, due to fistula-associated congestion.  The bridging vein (white arrows) is clearly seen in the left posterolateral intradural location, exactly as expected.  The vein entry into the nerve root sleeve is marked by the red arrow.
The same picture is shown next to the corresponding angiographic image:
Next, a temporary clip (black arrow) is placed on the vein, and an intraoperative angiogram is acquired, confirming that the right vein was indeed clipped.
Intraoperative angiographic confirmation of bridging vein occlusion is obtained.  Clip is marked by black arrow.  The radiculomedullary artery is intact (white arrow):
Following confirmation, the vein is cauterized and divided as close to the entry into the nerve root sleeve as comfortably feasible.  The fistula is cured, as shown in this final intraoperative angiogram:
A segment of the intraoperative video is shown:
Note: Surgical portion of the procedure performed by Drs. Donato Pacione and Anthony Frempong-Boadu of NYULMC
Another case of T12 spinal dural fistula surgical treatment, with nice IC Green injections; courtesy of Dr. Carolina Benjamin, Donato Pacione and Anthony Frempong-Boadu of NYULMC
For more discussion of treatement, see Spinal Dural Fistula Cases Page
