Case Archives Sigmoid Sinus Dural Fistula with Extensive Venous Infarction

The following cannot ever be overstated — dural fistula is a venous congestion disease.  Nearly all adverse effects due to dural fistulas of spine or brain, with few exceptions such as pulsatile tinnitus, are related to venous congestion.  In the brain, the most common fistula is the sigmoid sinus one, and the principal branches supplying these are occipital, ascending pharyngeal (neuromeningeal trunk) and middle meningeal pedicles.  Drainage proceeds antegrade into the jugular vein or retrograde towards the torcular.  Almost never is there reflux into cortical veins so long as one or both of these pathways are open. However, when both transverse sinus and jugular outflow are closed, either due to flow-related venopathy or some other mechanism, the outflow has nowhere to drain except into the cortical veins.  What happens next depends on the extent to which the cortical veins are collateralized.  If, for example, the fistula drains into a Labbe which is well-connected to the sagittal sinus or cavernous sinus, then not much may happen.  If, however, such connections are poor, then venous parenchymal congestion and hemorrhagic venous infarction results.  The following case shows the extreme of such pathology.

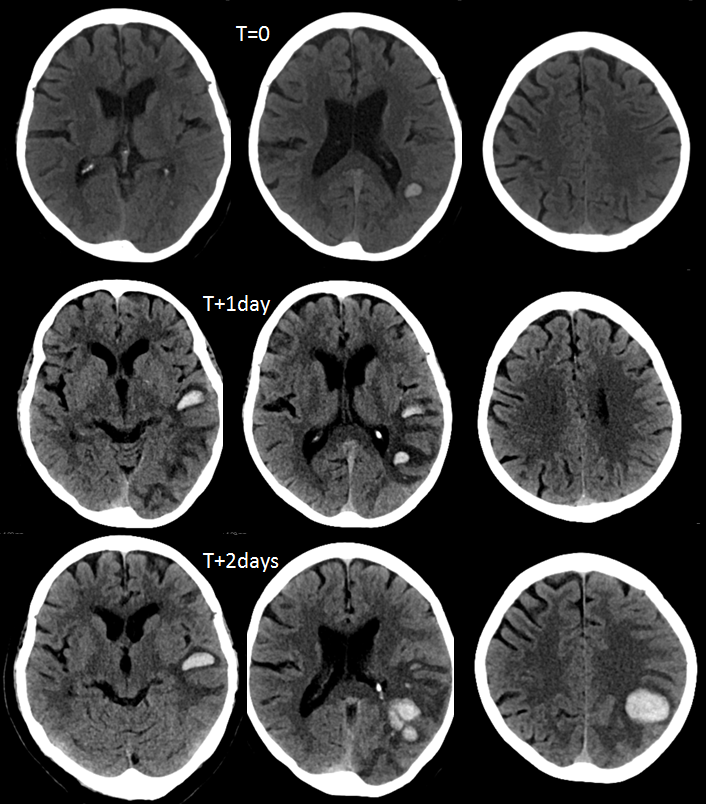

An elderly woman presents with mild receptive aphasia, which rapidly progresses over the next two days.  CT scans show evolving left temporal/parietal hemorrhage.

dural fistula venous infarct

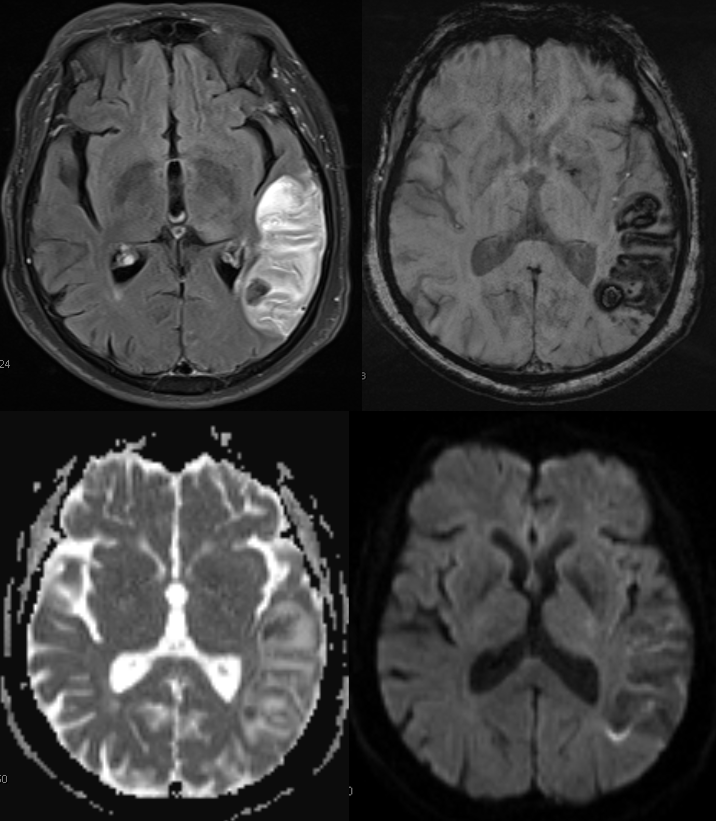

An MRI is done on Day 1

dural fistula venous infarct

Contrast-enhanced images beautifully show engorged transmedullary veins attempting to decompress the parenchyma into the subependymal network of the deep venous system.  See superficial venous system and deep venous system pages also.

http://www.neuroangio.org/wp-content/uploads/Archives/Dural_Fistula_Venous_Infarct/Archives_dural_fistula_venous_infarct_03.png

Here is an x-ray cast image of transmedullary veins, courtesy of Dr. Yun Peng Huang

Yun Peng Huang MD transmedullary veins

Back to our case. The transverse and sigmoid sinus appear rather unremarkable on post-contrast images.  Precontrast images showed no T1 hyperintensity.  No time of flight imaging was performed.

http://www.neuroangio.org/wp-content/uploads/Archives/Dural_Fistula_Venous_Infarct/Archives_dural_fistula_venous_infarct_04.png

Now on to the real thing — angiography.   Stereo pair vertebral injections show that, in fact, the left transverse, sigmoid, and jugular seem to be closed.

Venous infarct dural fistula

Left ICA injections show venous congestion of the entire hemisphere, particularly the inferior convexity.  Stereo images are excellent for demonstrating that the whole posterior temporal and inferior parietal lobes have no demonstrable venous drainage (circle, blue arrows).  Again, the left transverse/sigmoid sinuses are closed.  The morale of the story is TOF venous imaging is very important if one wants to definitively say whether a sinus is open or closed on MR

sigmoid sinus venous infarct

Left external carotid injection, frontal and lateral views, early arterial, early venous, and late venous phase images.  Transmastoid branches of the occipital artery (yellow) and petrosquamosal branch of the middle meningeal artery (red) are sullpying the fistula, with remaining sigmoid sinus venous pouch (black) and occlusion of the proximal sigmoid sinus and transverse sinus.  The fistula outflow is directed exclusively into cortical veins of Labbe (white) and temporoparietal vein (purple).  Neither vein has any collateral connections with other surface veins of the left convexity and therefore is unable to decompress into the superior sagittal or cavernous sinuses.  Instead, egress proceeds into tremendously congested transmedullary veins (blue oval AP view top right image) which were seen on the MRI.  Notice breakdown of the venous apparatus with active contrast extravasation into infarcted tissue (blue circle on lateral view, lower right image).  For followers of classification, this is a classic Cognard Type IIb.

Venous infarct dural fistula

Distal ICA injection is a bit better at showing breakdown of cortical veins in the lateral view and contrast leakage into perivenous spaces.

Venous infarct dural fistula

The value of collateral superficial venous connections cannot be overstated.  For example, in a different patient, similar venous sinus occlusion with exclusive cortical fistula outflow produced no symptoms except for headache, due to extensive collateralization which enabled the cortical venous system to decompress into the superior sagittal sinus.  For full review of this Cognard IIb case, click here.

Videos of the same case, demonstrating drainage into the superior sagittal sinus

Same in lateral

Back to our case. Stereo pairs of arterial phase.

Venous infarct dural fistula

Stereo pairs with lateral views beautifully showing transmedullary drainage. Note appearance of superior sagittal sinus due to drainage of the affected area by faintly appearing Rolando and Trolard veins

Venous infarct dural fistula

Transarterial approach treatment, with distal occipital catheterization (left) and nBCA cast (right).  Prior attempts at transvenous access to the pouch via both transverse and sigmoid sinuses were unsuccessful.  I use an 016 wire, but nothing stiffer.  Some operators, with perhaps more experience and confidence, use 035 wires to attempt getting through these occlusions.  So far i have not felt like doing so.

Venous infarct dural fistula

The money shot is nearly always from the middle meningeal.  Because of the microanatomy of the shunt region, we chose to use a Scepter C 4×10 balloon to assure ourselves of a wedge position close to the fistula, followed by nBCA injection. Pre-nBCA microcatheter images show wedge position with no contrast reflux along the MMA.

Venous infarct dural fistula

Glue shot cast, with excellent penetration across the fistula into the venous pouch.

Venous infarct dural fistula

Post-embolization left CCA views show no residual fistula.  There is minimal improvement in venous congestion — the parieto-occipital vein is now seen in the venous phase, attempting to participate in some way in useful parenchymal drainage.  Being a blind-ending structure, it is unlikely to do much good.  The patient is making a very slow recovery.  The overall hemispheric congestion has improved.  Notice a large diploic vein on the left (not labeled, but see Venous Sinuses page for more on the topic)

Venous infarct dural fistula

Post-embolization CT scan shows interval growth of venous infarction (between last CT and end of procedure) with extensive contrast staining of the congested area, including more hyperdense foci of frank contrast leakage.  So far, recovery has been predictably slow.

http://www.neuroangio.org/wp-content/uploads/Archives/Dural_Fistula_Venous_Infarct/Archives_dural_fistula_venous_infarct_16.png
